The key is not simply deciding to use ULTEM. The better decision is choosing the right grade, shape, tolerance strategy, and documentation approach for the final environment. For many Modern Plastics customers, ULTEM fluidics components are reviewed alongside materials such as PEEK, PPS, PTFE, acetal, nylon, polycarbonate, stainless steel, or other engineering plastics.

Quick Answer

ULTEM can support fluidics applications where precision flow paths, heat resistance, hydrolysis resistance, stiffness, electrical insulation, and sterilization capability are important.

What ULTEM™ PEI Is

ULTEM™ is a family of high-performance amorphous thermoplastics based on polyetherimide, commonly abbreviated as PEI. Depending on the grade, PEI materials may offer a useful combination of high heat resistance, strength, stiffness, dimensional stability, flame resistance, electrical insulation, and machinability.

ULTEM is commonly supplied as stock shapes such as sheet, rod, tube, and film, and it can also be molded, machined, or fabricated into finished and semi-finished components. The exact grade still matters. Unfilled, glass-filled, healthcare-focused, ESD-safe, and specialty grades can perform differently, so the material should be matched to the part geometry, operating environment, and documentation requirements.

Key Properties and Performance Factors

• High heat resistance can help ULTEM maintain useful mechanical performance in elevated-temperature equipment and sterilization-adjacent environments.
• Dimensional stability supports tight-tolerance components, fixtures, housings, and precision assemblies.
• Electrical insulation makes ULTEM useful for connector bodies, sensor housings, insulators, electronic supports, and high-temperature electrical hardware.
• Strength and stiffness allow ULTEM to support structural support roles in properly designed, non-metal-replacement applications.
• Flame retardance and low-smoke performance can be important in aerospace, transportation, electronics, energy, and enclosed industrial environments.
• Machinability allows ULTEM to be fabricated into prototypes, custom components, precision fixtures, insulating parts, and production pieces.
• Chemical and hydrolysis resistance can be valuable, but compatibility must be reviewed carefully by exact grade, chemical, concentration, temperature, and exposure time.

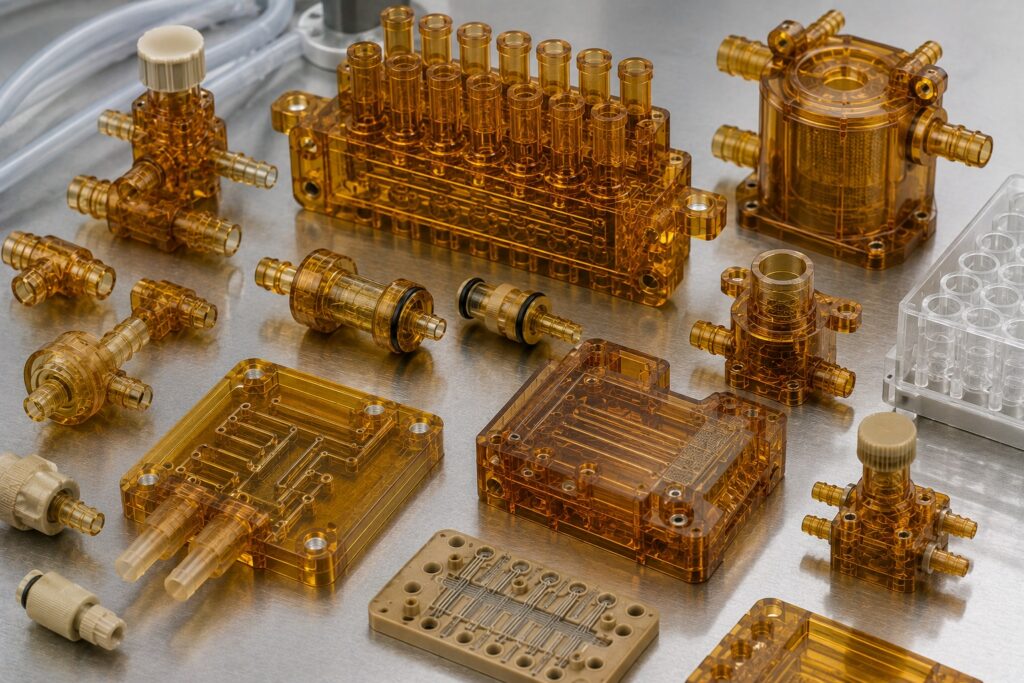

ULTEM may support medical and laboratory fluidics when chemistry, sterilization, and validation are reviewed.

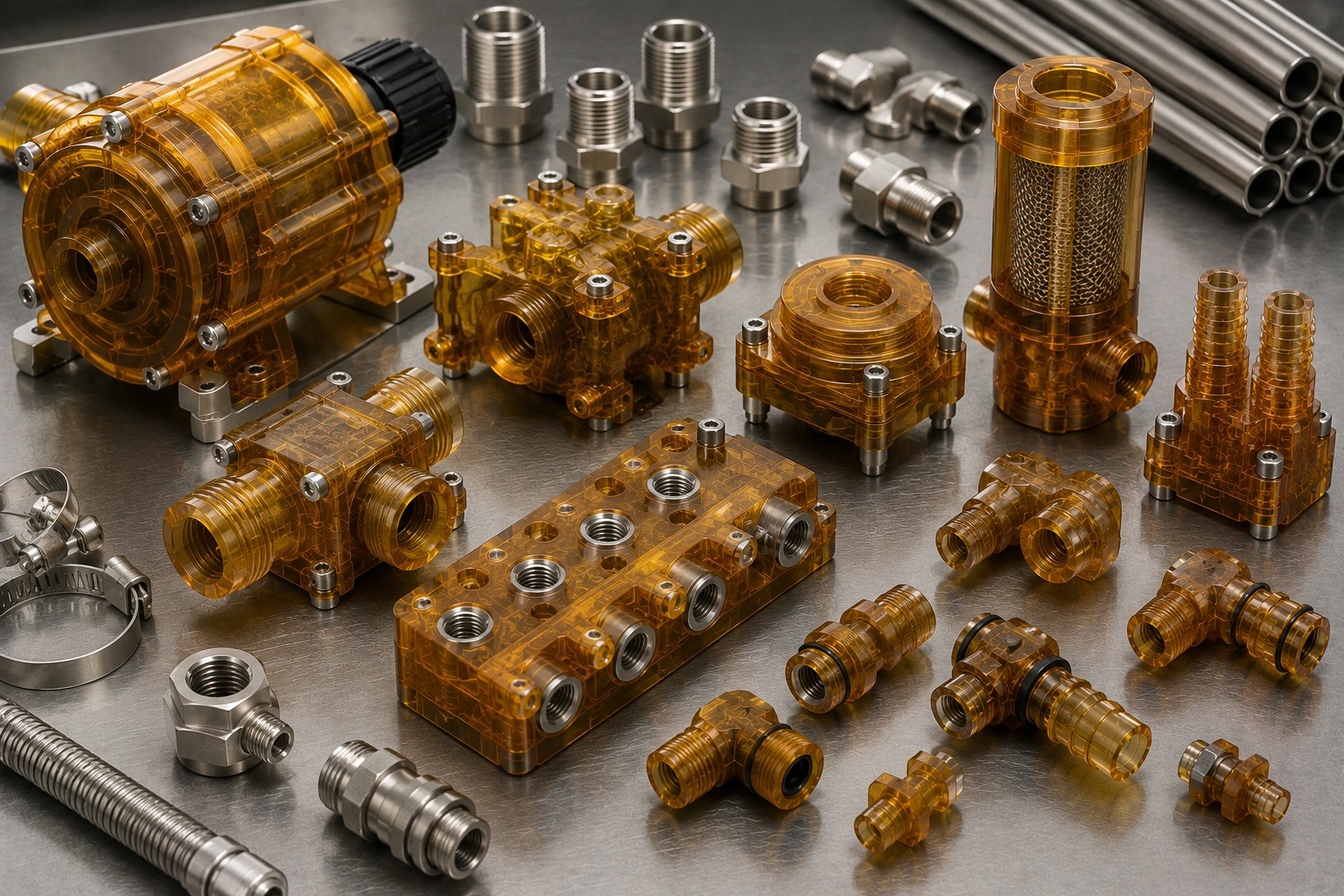

Common Ultem Fluidics Components Uses

• Pump housings, impellers, diaphragm supports, wear components, and precision pump manifolds
• Valve bodies, solenoid valve insulation parts, fluid manifolds, microfluidic distribution blocks, and check valve parts
• Dialysis fluid systems, drug delivery manifolds, sterilizable connectors, diagnostic cartridges, and bioprocessing connectors
• Chromatography systems, diagnostic analyzers, spectroscopy instruments, sample handling systems, and precision metering hardware
• Filter housings, membrane supports, flow regulators, heated water system components, and purification systems

The common thread across these applications is that ULTEM often fits where standard plastics may not provide enough temperature resistance, stiffness, electrical insulation, or dimensional control. It is not a universal material, but it can be an effective option when the part requires a higher-performance balance of properties.

Important Selection Considerations for Ultem Fluidics Components

• Review chemical compatibility, sterilization method, pressure, temperature, sealing geometry, and fluid purity requirements.
• ULTEM may not be suitable for strong solvents, chlorinated chemicals, aromatic hydrocarbons, or ultra-high-purity chemical transfer.
• Consider stress cracking, threads, tight corners, and sealing surfaces during part design.
• Compare ULTEM with PEEK, PPS, PTFE/PFA, PVDF, polypropylene, PVC, stainless steel, or ceramics for extreme environments.

Engineers and purchasing teams should also consider total cost of ownership. ULTEM is typically more expensive than commodity plastics, so its value is strongest when it helps reduce risk, withstand heat or cleaning cycles, improve part reliability, support electrical performance, or meet demanding manufacturing and documentation expectations.

Comparisons and Alternatives

ULTEM fills a valuable niche where fluid systems require heat resistance, sterilization durability, electrical integration, precision, and dimensional stability. PTFE, PFA, PVDF, PEEK, PPS, polypropylene, PVC, stainless steel, or ceramics may be better for aggressive chemistry, ultra-high purity, lower cost, or extreme service.

The right alternative depends on what drives the application: heat, wear, chemical exposure, food contact, biocompatibility, traceability, electrical performance, flame requirements, cost, or availability. In many projects, the material selection process is less about choosing the strongest material and more about choosing the most appropriate material for the actual service conditions.

Fabrication, Machining, and Documentation Notes

ULTEM can be machined into precise components, but the design and machining approach still matter. Thin walls, sharp inside corners, aggressive tolerances, unsupported features, or stress-concentrating details can affect part stability and long-term performance. Drawings should identify critical dimensions, holes, slots, chamfers, finish expectations, inspection needs, and any documentation requirements.

For production work, customers should discuss stock shape availability, cut-to-size needs, machining method, part geometry, traceability expectations, material certificates, and grade-specific documentation before ordering. This is especially important for aerospace, medical, semiconductor, pharmaceutical, food, energy, and other documentation-driven environments.

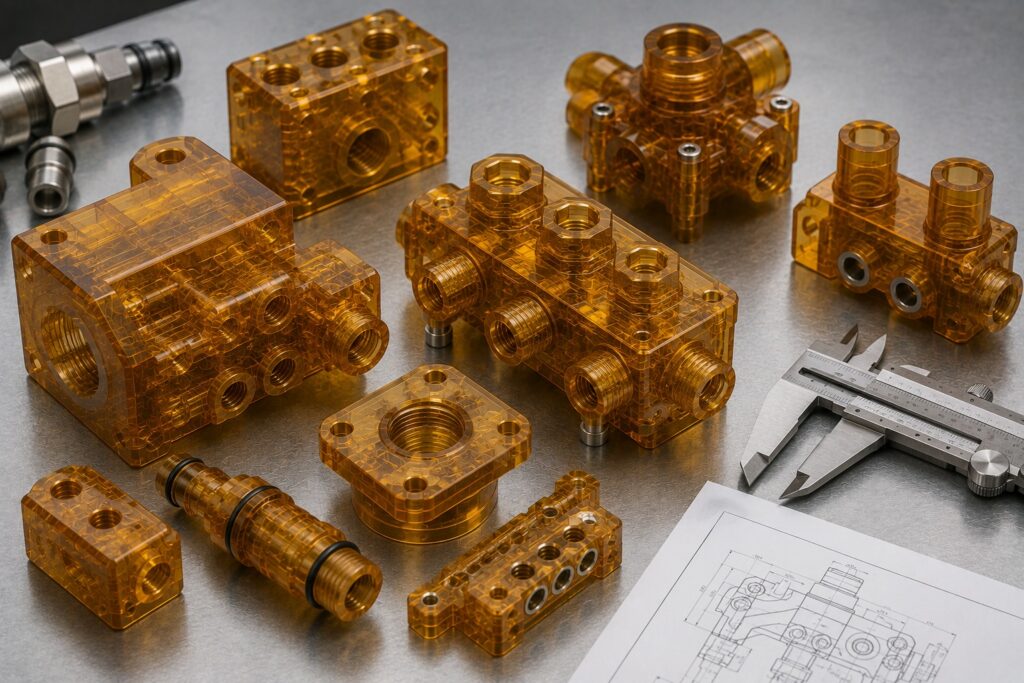

Machined ULTEM manifolds require careful review of geometry, sealing surfaces, and fluid compatibility.

Why Modern Plastics

Modern Plastics supports customers with high-performance plastic stock shapes, precision cutting, custom plastic fabrication, machining support, documentation awareness, and practical material-selection guidance. The team works with engineers, OEMs, procurement teams, and fabricators who need reliable materials and support for demanding industrial applications.

When sourcing ULTEM fluidics components, Modern Plastics can help review the application, compare ULTEM with other engineering plastics, discuss stock shape options, support machining or fabrication needs, and help customers think through documentation expectations before production begins.

Is ULTEM the Right Material for This Application?

Ultem Fluidics Components can be a strong choice when the application calls for heat resistance, dimensional stability, electrical insulation, flame performance, stiffness, and reliable fabrication or machining. It is not the answer for every high-wear, highly aggressive chemical, structural, or cost-sensitive environment, but when the service conditions match the material profile, ULTEM can help support repeatable performance and sourcing confidence.

Frequently Asked Questions

Where is ULTEM used in fluidics?

ULTEM is used in pump housings, manifolds, valve bodies, diagnostic cartridges, lab instruments, filtration supports, sterilizable connectors, and precision metering components.

Why is ULTEM valuable for fluidics systems?

ULTEM provides dimensional stability, heat resistance, hydrolysis resistance, stiffness, electrical insulation, and sterilization compatibility in selected grades and environments.

Can ULTEM be used for medical or laboratory fluidics?

Yes, in selected applications such as diagnostic analyzers, sterilizable connectors, manifolds, and support parts, but fluid-contact and validation requirements must be reviewed.

When should ULTEM not be used in fluid handling?

ULTEM may not be the best choice for strong solvents, chlorinated chemicals, highly aggressive fluids, ultra-high-purity transfer, or severe wear applications.

Can Modern Plastics machine ULTEM manifolds or valve parts?

Modern Plastics can support ULTEM stock shapes, machining, fabrication guidance, and documentation discussions for pump, valve, manifold, and fluidics projects.
