ULTEM semiconductor components are an important topic for engineers, procurement teams, OEMs, and manufacturers that need high-performance plastic components with a careful balance of heat resistance, dimensional stability, electrical insulation, manufacturability, and documentation control. ULTEM™, a family of polyetherimide (PEI) materials, is often evaluated when standard plastics do not provide enough thermal, mechanical, or electrical performance.
The key is not simply deciding to use ULTEM. The better decision is choosing the right grade, shape, tolerance strategy, and documentation approach for the final environment. For many Modern Plastics customers, ULTEM semiconductor components are reviewed alongside materials such as PEEK, PPS, PTFE, acetal, nylon, polycarbonate, stainless steel, or other engineering plastics.
Quick Answer
ULTEM can be useful in semiconductor manufacturing for precision tooling, wafer handling, test hardware, electrical insulation, and automation support where heat resistance, stiffness, and dimensional stability matter.
What ULTEM™ PEI Is
ULTEM™ is a family of high-performance amorphous thermoplastics based on polyetherimide, commonly abbreviated as PEI. Depending on the grade, PEI materials may offer a useful combination of high heat resistance, strength, stiffness, dimensional stability, flame resistance, electrical insulation, and machinability.
ULTEM is commonly supplied as stock shapes such as sheet, rod, tube, and film, and it can also be molded, machined, or fabricated into finished and semi-finished components. The exact grade still matters. Unfilled, glass-filled, healthcare-focused, ESD-safe, and specialty grades can perform differently, so the material should be matched to the part geometry, operating environment, and documentation requirements.
Key Properties and Performance Factors
- High heat resistance can help ULTEM maintain useful mechanical performance in elevated-temperature equipment and sterilization-adjacent environments.
- Dimensional stability supports tight-tolerance components, fixtures, housings, and precision assemblies.
- Electrical insulation makes ULTEM useful for connector bodies, sensor housings, insulators, electronic supports, and high-temperature electrical hardware.
- Strength and stiffness allow ULTEM to support structural support roles in properly designed, non-metal-replacement applications.
- Flame retardance and low-smoke performance can be important in aerospace, transportation, electronics, energy, and enclosed industrial environments.
- Machinability allows ULTEM to be fabricated into prototypes, custom components, precision fixtures, insulating parts, and production pieces.
- Chemical and hydrolysis resistance can be valuable, but compatibility must be reviewed carefully by exact grade, chemical, concentration, temperature, and exposure time.
Common Ultem Semiconductor Components Uses

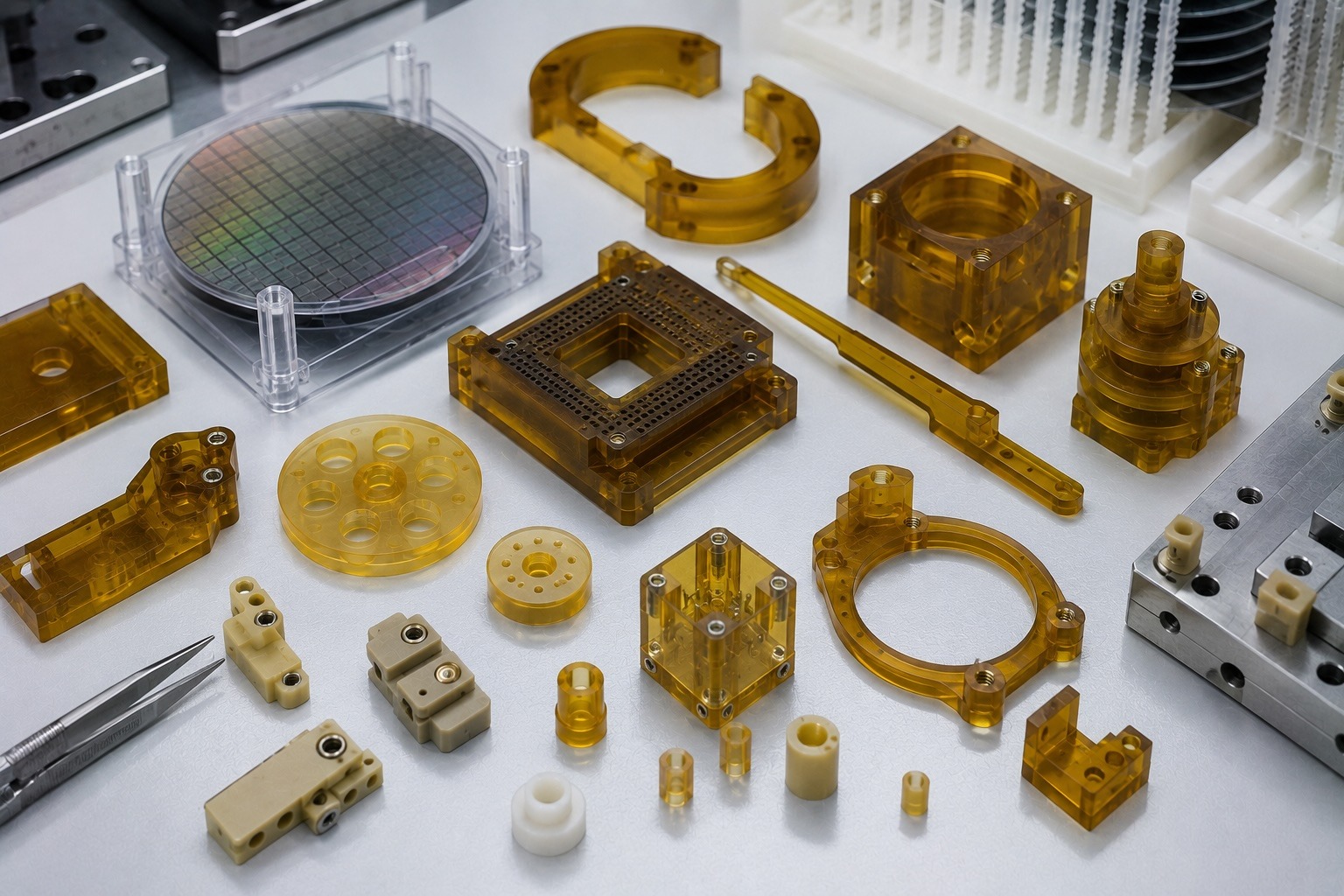

- Wafer carriers, nests, end effectors, pick-and-place tooling, and robot arm insulators
- IC test fixtures, burn-in sockets, electrical isolators, and semiconductor test hardware
- Wet process fixtures, manifolds, pump insulators, and structural supports when chemistry is compatible
- Alignment fixtures, process tooling, metrology supports, and SMT assembly tooling
- RF insulators, connector bodies, sensor housings, cable management, and automation components
The common thread across these applications is that ULTEM often fits where standard plastics may not provide enough temperature resistance, stiffness, electrical insulation, or dimensional control. It is not a universal material, but it can be an effective option when the part requires a higher-performance balance of properties.

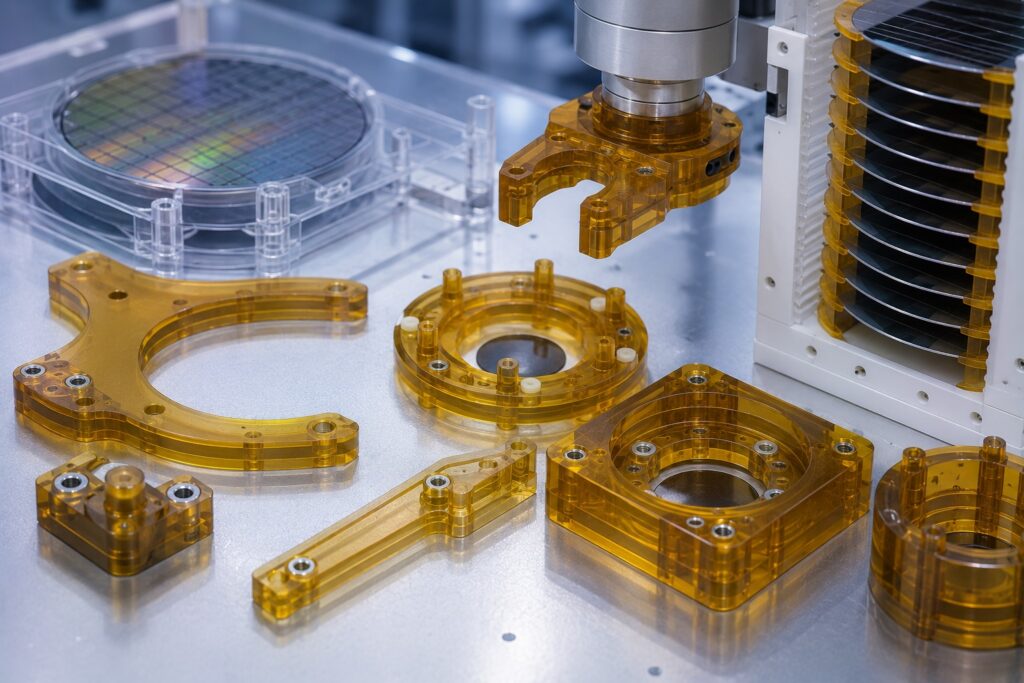

ULTEM may support wafer handling and automation parts when particle, chemistry, and dimensional requirements are reviewed.
Important Selection Considerations for Ultem Semiconductor Components
- Evaluate chemical exposure, cleaning chemistry, particle sensitivity, electrical requirements, and process temperature.
- Choose grade-specific PEI/ULTEM data rather than assuming all grades behave the same in semiconductor settings.
- Review machining methods, edge finish, cleaning, and handling to reduce contamination and particle concerns.
- Consider PTFE/PFA, PVDF, PEEK, ceramics, or quartz for harsher wet chemistry, plasma, or ultra-high-purity applications.
Engineers and purchasing teams should also consider total cost of ownership. ULTEM is typically more expensive than commodity plastics, so its value is strongest when it helps reduce risk, withstand heat or cleaning cycles, improve part reliability, support electrical performance, or meet demanding manufacturing and documentation expectations.
Comparisons and Alternatives
ULTEM often fits the middle ground between standard engineering plastics and premium materials such as PEEK, fluoropolymers, ceramics, or quartz. It can provide heat resistance, electrical insulation, stiffness, and machinability, but may not be the best choice for the harshest plasma, acid, or ultra-high-purity chemical applications.
The right alternative depends on what drives the application: heat, wear, chemical exposure, food contact, biocompatibility, traceability, electrical performance, flame requirements, cost, or availability. In many projects, the material selection process is less about choosing the strongest material and more about choosing the most appropriate material for the actual service conditions.
Fabrication, Machining, and Documentation Notes
ULTEM can be machined into precise components, but the design and machining approach still matter. Thin walls, sharp inside corners, aggressive tolerances, unsupported features, or stress-concentrating details can affect part stability and long-term performance. Drawings should identify critical dimensions, holes, slots, chamfers, finish expectations, inspection needs, and any documentation requirements.
For production work, customers should discuss stock shape availability, cut-to-size needs, machining method, part geometry, traceability expectations, material certificates, and grade-specific documentation before ordering. This is especially important for aerospace, medical, semiconductor, pharmaceutical, food, energy, and other documentation-driven environments.

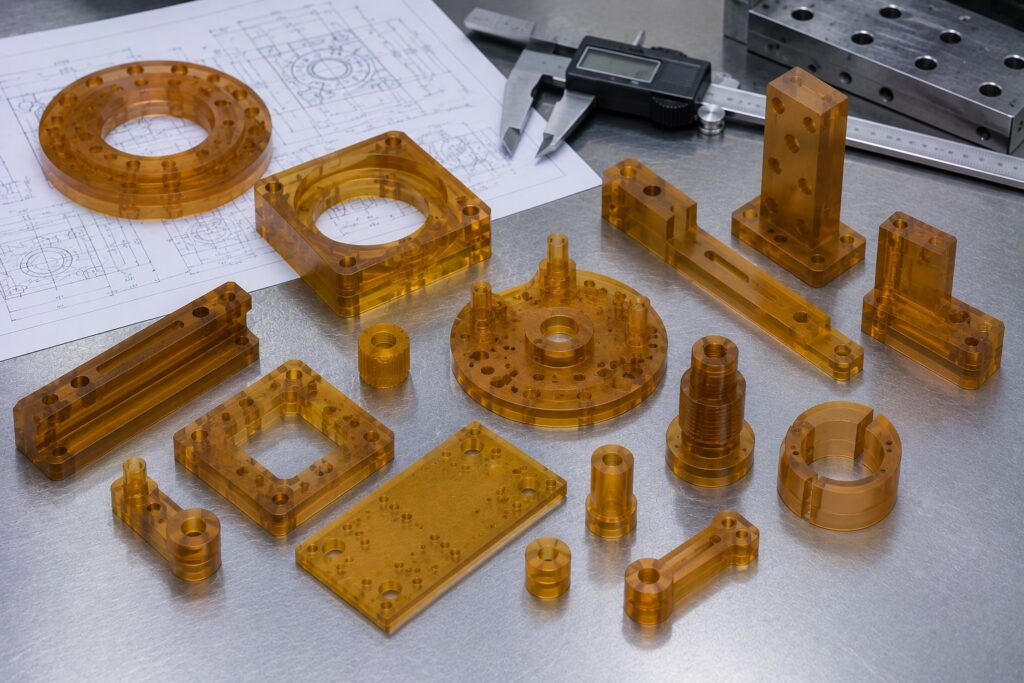

CNC-machined ULTEM fixtures can support precision semiconductor manufacturing programs when requirements are clear.
Why Modern Plastics
Modern Plastics supports customers with high-performance plastic stock shapes, precision cutting, custom plastic fabrication, machining support, documentation awareness, and practical material-selection guidance. The team works with engineers, OEMs, procurement teams, and fabricators who need reliable materials and support for demanding industrial applications.
When sourcing ULTEM semiconductor components, Modern Plastics can help review the application, compare ULTEM with other engineering plastics, discuss stock shape options, support machining or fabrication needs, and help customers think through documentation expectations before production begins.
Is ULTEM the Right Material for This Application?
Ultem Semiconductor Components can be a strong choice when the application calls for heat resistance, dimensional stability, electrical insulation, flame performance, stiffness, and reliable fabrication or machining. It is not the answer for every high-wear, highly aggressive chemical, structural, or cost-sensitive environment, but when the service conditions match the material profile, ULTEM can help support repeatable performance and sourcing confidence.
Frequently Asked Questions
Where is ULTEM used in semiconductor manufacturing?
ULTEM is used for wafer handling parts, test fixtures, electrical insulators, automation components, metrology supports, and selected wet process support parts when the grade and environment are appropriate.
Why is ULTEM useful for semiconductor tooling?
ULTEM offers dimensional stability, heat resistance, stiffness, electrical insulation, and machinability, which can support tight-tolerance tooling and automation components.
Is ULTEM suitable for all cleanroom applications?
No. ULTEM suitability depends on particle requirements, chemical exposure, cleaning processes, grade selection, machining quality, and the final use environment.
What materials compete with ULTEM in semiconductor applications?
Alternatives may include PEEK, PTFE, PFA, PVDF, PPS, ceramics, quartz, or metals depending on heat, chemical, electrical, and contamination requirements.
Can Modern Plastics help with semiconductor ULTEM parts?
Modern Plastics can support stock shapes, cut-to-size material, machining support, fabrication guidance, and documentation discussions for semiconductor-related ULTEM projects.
